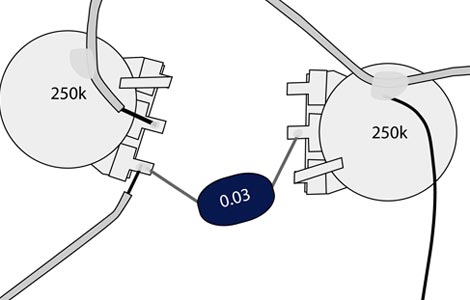

Simplified wiring illustration and schematic for the Gibson Grabber bass guitar. Note, both of these diagrams are based on the 1970s Gibson Grabber basses; i.e. the volume pot (left) and tone (right) are both the same part with a resistance of 250kΩ (part 70023).
By the time of the 1981 Gibson parts list, the Grabber potentiometers were listed as: volume - 300K audio taper part 70033, tone - 100K audio taper part 70031
Gibson Grabber circuit image
Gibson Grabber schematic
