Gibson Les Paul Bass circuitry

Gibson bass guitars | Les Paul Bass main page | wiring & circuitry

Gibson Les Paul Bass circuit image

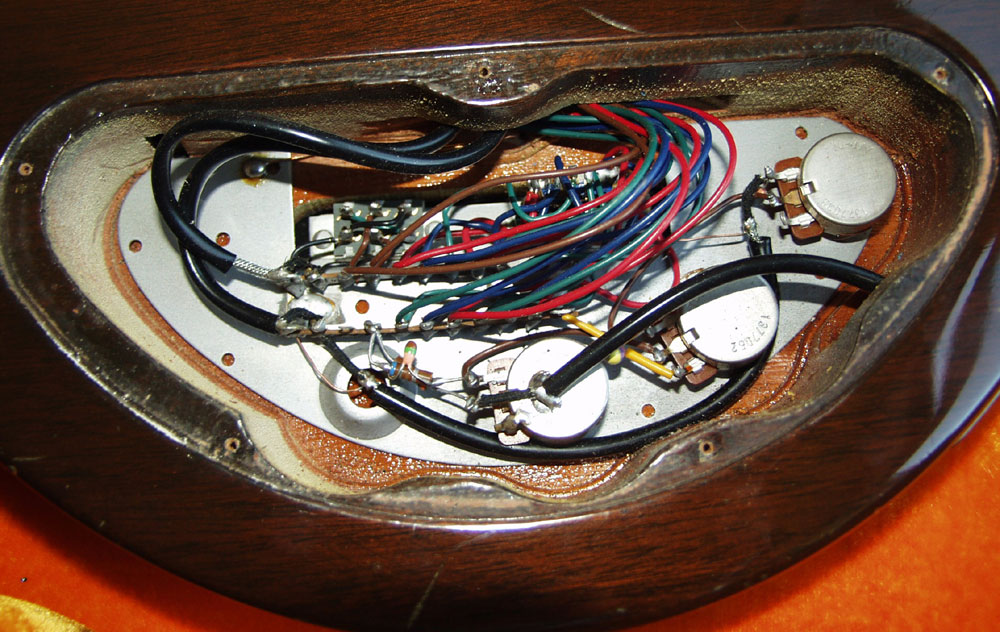

The 1969-1971 Gibson Les Paul Bass, like its descendant the Gibson Les Paul Triumph, was created with some very interesting and highly innovative circuitry - paired with two specially designed low impedance pickups. The image below shows the view from the control cavity.

Gibson Les Paul Bass circuit image

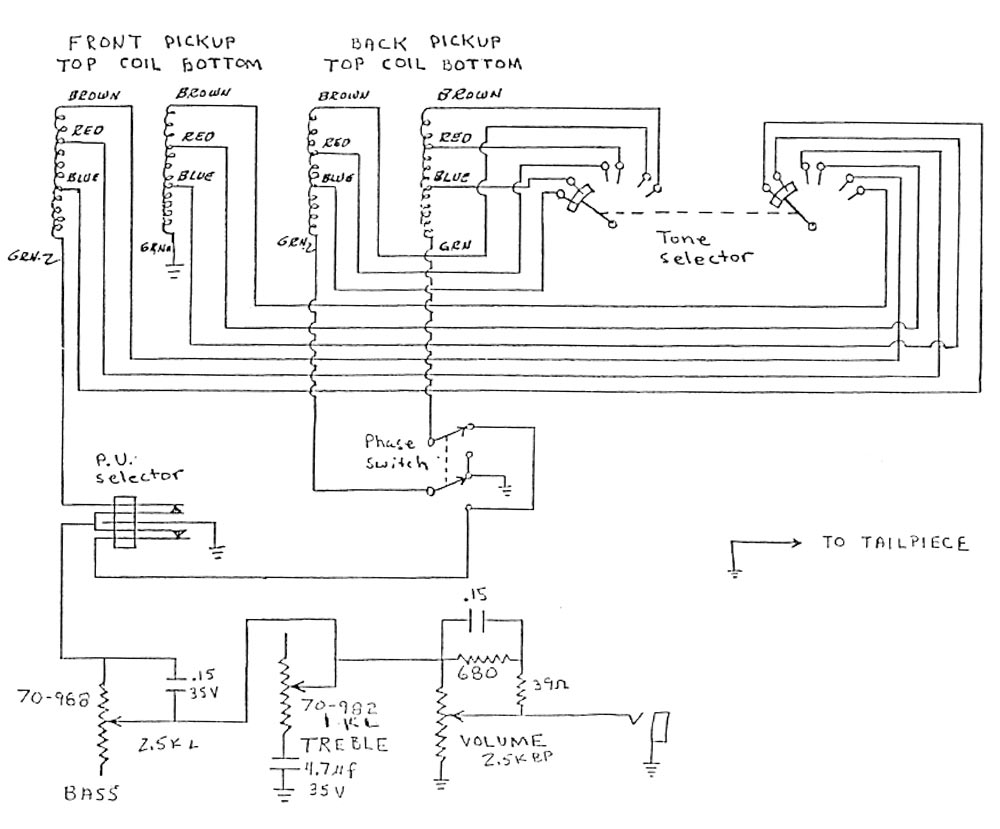

Gibson Les Paul Bass circuit schematic

Gibson Les Paul Bass circuit schematic
