1965 Gibson EB3 Bass (Pelham blue)

Now here is a beautiful and rare example of the Gibson EB-3 bass, in custom order Pelham Blue finish. In the 1960s Gibson custom finish instruments were available in limited quantities; unlike Fender custom colours, which were widely promoted, Gibson custom colours were a rarity, and certainly not pushed. There is no mention of custom finishes for EB basses in the 1965 price list; only for Firebird guitars and Thunderbird basses. It us not known how many Pelham blue Gibson EB3 (or Gibson EB0) basses were shipped, but there were certainly not many. The total number of EB-3s shipped in 1965 was just 339. See Gibson EB3 shipping totals. In June 1965, the Gibson EB-3 was listed at $337.50 in the US (zone 1).

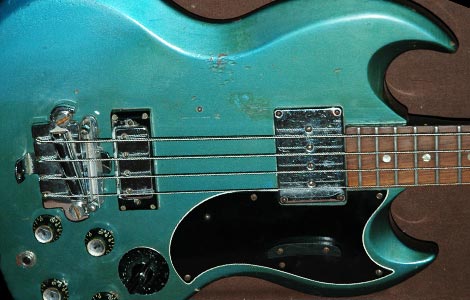

This bass is totally 1965: early-style wide control spacing, and bell knobs, yet chrome hardware: EB humbucker at the neck, and a mini humbucker at the bridge. Chrome-plated bar bridge with string mute. Like all EB-3s, controls are two volume, two tone and a four position varitone switch in the middle. Note also, the last remnants of silvering peeled from the bridge pickup surround. This would have been one of the last basses produced with this wider control layout. In the second half of the year, a new, closer arrangement was introduced, allowing a common control route for all SG guitars and solid body EB basses. Compare this to a later 1969 EB3 with narrow-spaced controls and plain surround.

This was about the time that Gibson first used the second version bar bridge with curved arms. This still worked with the same mute as shown.

One surprising feature of this bass is the three-ply scratchplate - possibly a replacement - the EB-0 was typically fitted with this guard; the EB-3 had a thicker, five-ply (b-w-b-w-b) guard, though both had the same footprint and could work on either bass. This bass is fitted with the earlier 'wide' cover pickup.

Like all early-mid 1960s EBs, this bass is fitted with nickel plated Kluson 538 tuning keys. The potential for damage of this headstock design is in evidence here; the truss rod access cavity makes for a weak area anyway, but this is clearly compounded by the screw holes used to mount the tuners. This headstock has had a sensitive repair, without unnecessary overspraying, and this shows that the fault line passes through two of these holes.

Pelham Blue finishes often turn green as the sunlight yellows the clearcoat. Areas protected from sun by hardware tend to show more original colouration. In this image with the scratchplate removed, the true Pelham colour remains. The reverse of this guitar had a large sticker at one point, and this has prevented the yellowing on the reverse of this bass, see below.

The control cavity is still the larger irregular style - later in 1965 this would be changed to the symmetrical shape far more familiar to the majority of Gibson solid bodies ever since. This is the type 1 EB3 circuitry (see schematic) used by Gibson until 1971. This clear photograph allows us to read the potentiometer codes. One is marked 1376529. This tells us that the pot was made by CTS (code 137) in the 29th week of 1965 (more about Gibson bass pot codes).

All pictures are courtesy of Craig Boehme who sold this instrument on Ebay for a little over $3000 in June 2005.
