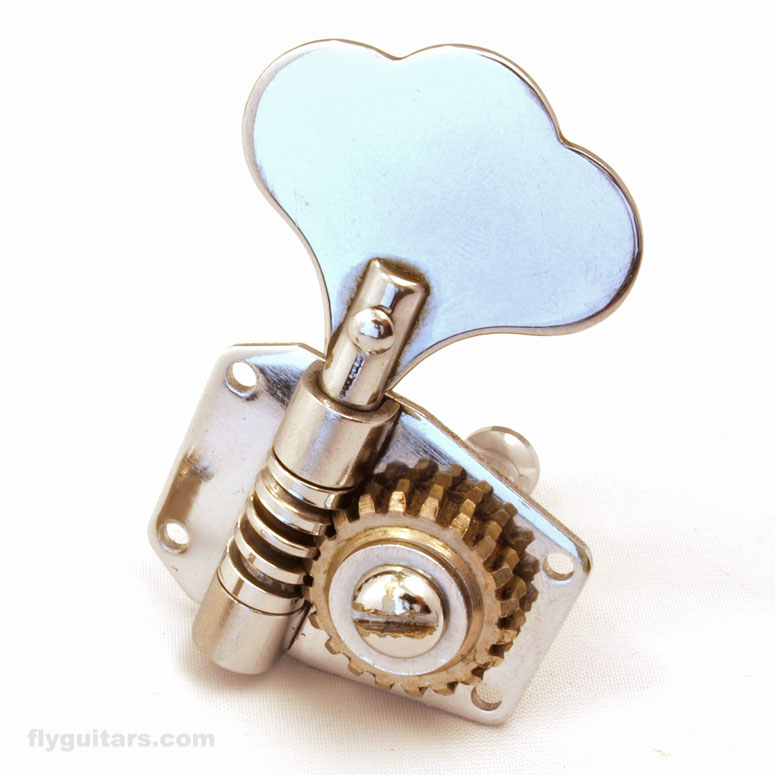

Kluson 538 open gear tuning key (1960s)

Gibson bass guitars | Part descriptions | Tuners | Kluson 538 open gear tuning key (1960s)

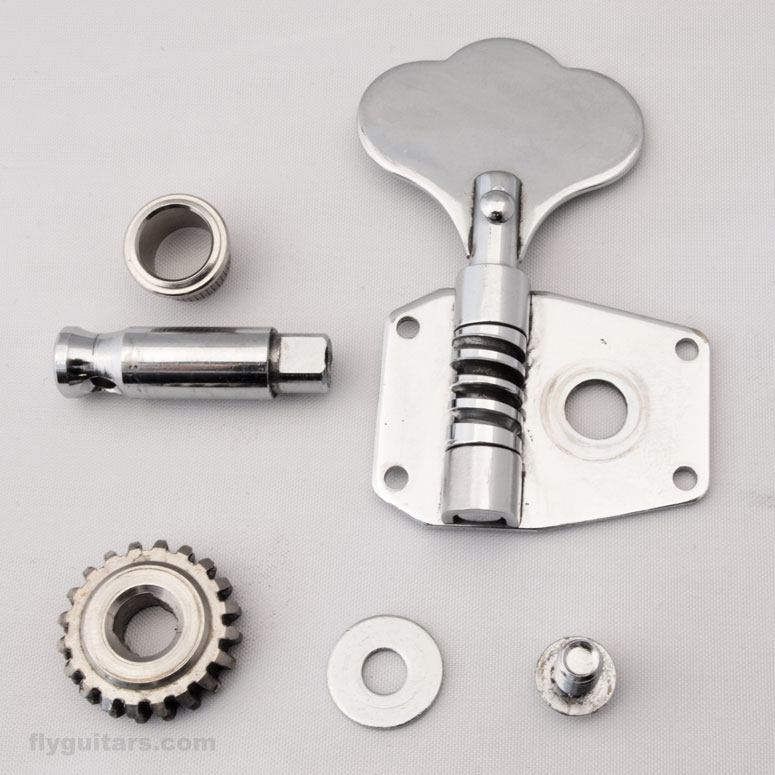

The Kluson 538 open gear tuning key is reliable, hard-wearing and easy to maintain. No wonder they were used so widely. Gibson part MH-538 (1965), 82536 (1971). Gibson used them throughout the 1960s. on the EB-0, EB-2, EB-3, Epiphone Newport and Epiphone Rivoli basses. Note the footprint has the characteristic indentations, something not present on the similar looking Schaller BM tuners that Gibson used in the seventies and eighties. This required extra routing of course, and was most likely a factor in their discontinuation in 1969.

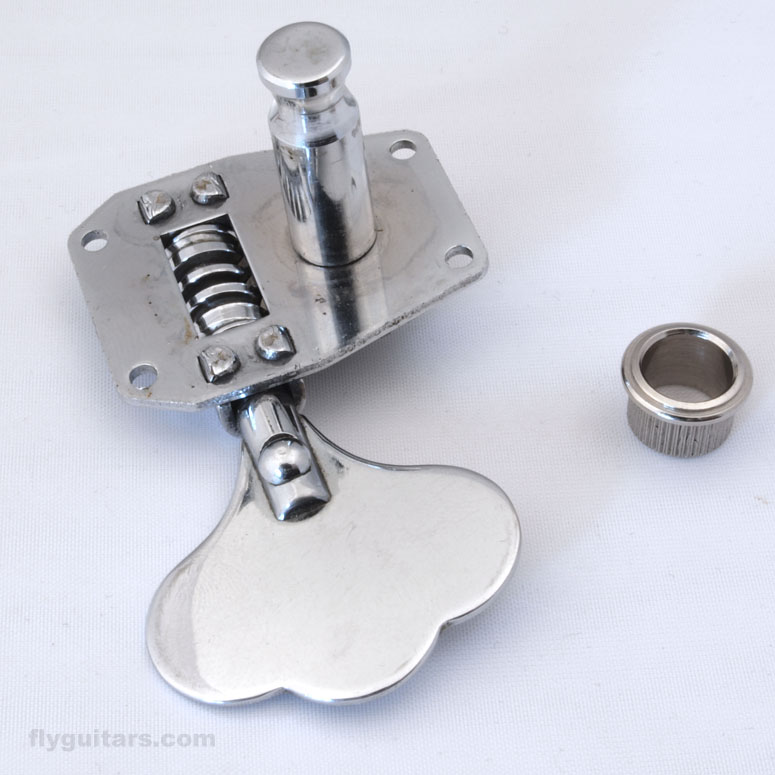

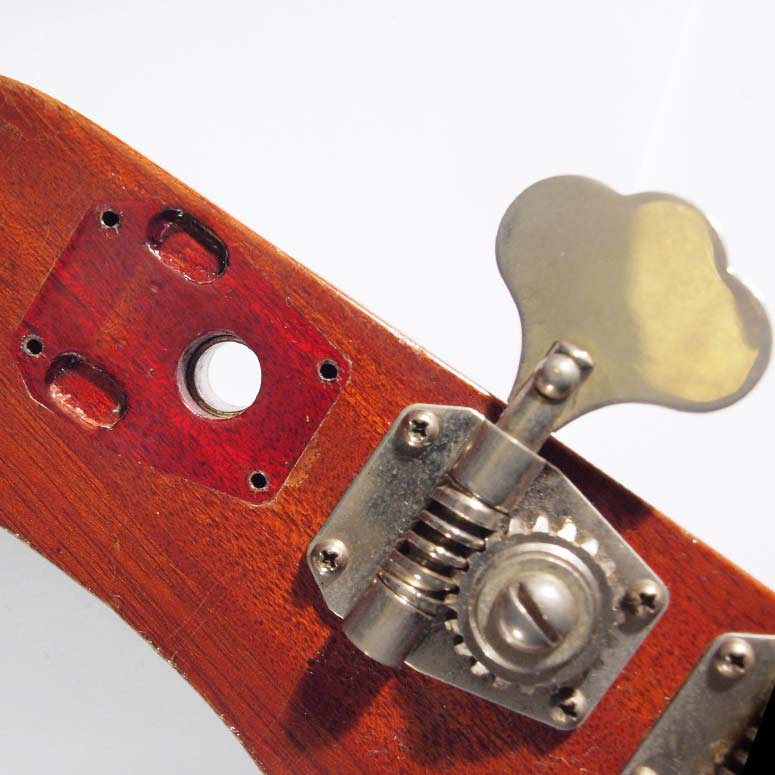

The post diameter is just 3/8" (approx 9.5mm), post hole 7/16" (approx 11.1mm); smaller than the BM.

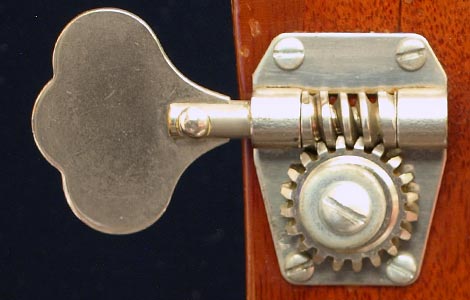

Note also the characteristic clover leaf shape of the buttons. Early versions of the 538 were nickel plated (as seen in the first pictures below), later chrome.

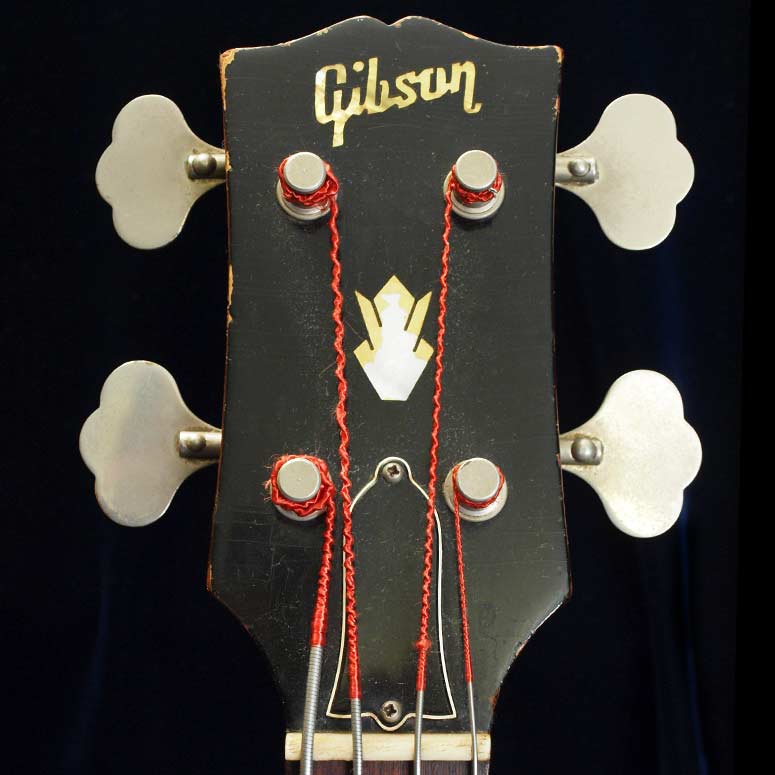

Some basses fitted with these tuners

1961 Gibson EB3
1962 Epiphone Newport Deluxe
1964 Gibson EB-0 bass
1965 Epiphone Newport
1966 Gibson EB-0
1967 Epiphone Rivoli

List of Gibson bass guitar tuners
