Early 1960s gibson EB bass logo

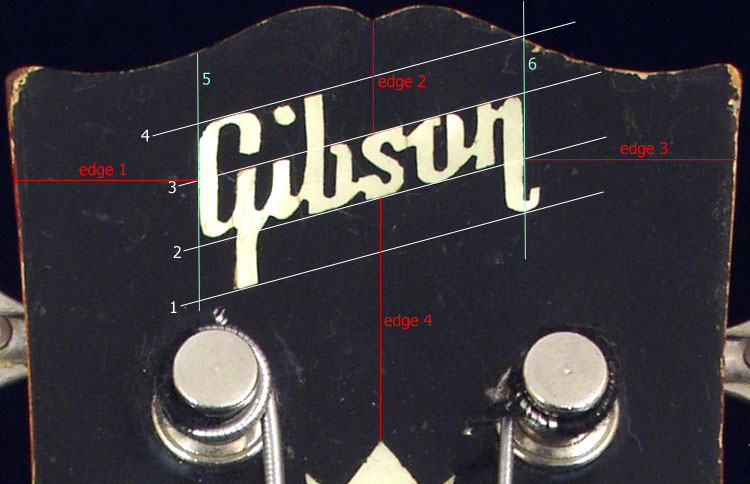

The logo is situated the following distances from the edges -
edge 1: 20.8 mm
edge 2: 14.0 mm
edge 3: 24.5 mm
edge 4: 29.0 mm

And the logo has the following dimensions -
width (between lines 5 and 6): 38.0 mm
total height (between lines 1 and 4): 21.1 mm
height 2 (between lines 2 and 3): 8.3 mm
height 3 (between lines 2 and 4): 14.3 mm
height 4 (between lines 1 and 3): 14.3 mm

All measurements taken using a micrometer, and are probably accurate to +0.2mm
