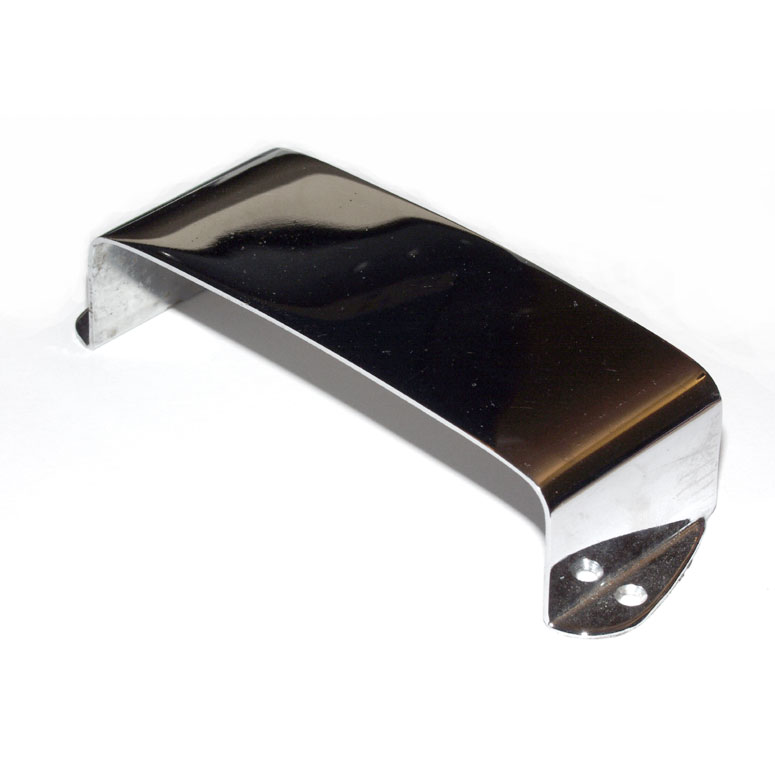

Gibson Thunderbird/EB/Les Paul/Ripper bridge cover (1963-80)

Gibson bass guitars | Part descriptions | Bridges | Gibson Thunderbird/EB/Les Paul/Ripper bridge cover (1963-80)

One of the most widely used piece of Gibson hardware. This part is more typically described as a handrest in Gibson literature, though I prefer the more descriptive 'bridge cover', to avoid confusion with the early/mid 1960s handrest that preceded it. Nickel (early sixties only) or chrome plated brass. Bridge covers were first fitted to Thunderbird basses from 1963; nickel plated, at first at least, but with the advent of the new intonatable tune-o-matic bridge (circa 1967) chrome plated examples were fitted to the EB-0, EB-2, EB-3, plus their Epiphone equivalent models, the Epiphone Newport and Rivoli. Later this part would be fitted to the reissued EB-1, the Les Paul Bass, Les Paul Triumph and SB-350/SB-450. In 1973, the two point tune-o-matic was replaced by the three point, but was still used in conjunction with this cover on all older basses, and the new Les Paul Signature and Ripper models.

Also not to be confused with the smaller nickel plated covers installed on the SB-300/SB-400 from 1971 and Grabber/G3 from 1974/75.

As string mutes became less-desirable on bass guitars in the early seventies, the older under-bridge mute was phased out, and a much simpler muting mechanism was devised: a strip of foam was attached to the underside of this cover, that just touched the tops of the strings, dampening vibrations in the same way as the felt of the previous mute version. To unmute, however, required the removal of the bridge cover itself.

Approximate dimensions Total length 127mm (107mm excluding tabs), mounting hole spacing 117mm, width 42mm, height mm. Plate thickness approx 1.5mm

Gibson part numbers 1965: HR750B; 1971, 1977: 19410; 1980: 80037

Some basses fitted with this bridge

1968 Gibson EB-2D bass
1969 Gibson EB-2W bass
1969 Gibson EB-0 bass
1969 Gibson Les Paul bass
1970 Gibson EB-0 bass
1971 Gibson EB-3 bass
1972 Gibson Les Paul Triumph bass
1972 Gibson EB-0L bass
1972 Gibson EB-3L bass
1973 Gibson SB450 Bass
1974 Gibson Ripper Bass
1978 Gibson EB-3 bass
