Gibson Victory Standard wiring plan

Gibson bass guitars | Victory main page | technical information

The Gibson Victory Standard is a passive instrument (unlike the active Artist), and as such has a relatively simple electrical circuit.

Electrical components Standard consist of just one 300KΩ volume control (part 70-031), one 100KΩ tone control (part 70-033), an input jack, and a two-way series/parallel switch. The first image below shows the wiring schematic produced by Gibson. A simplified wiring diagram is also included (second image). See also the Victory Standard wiring photos.

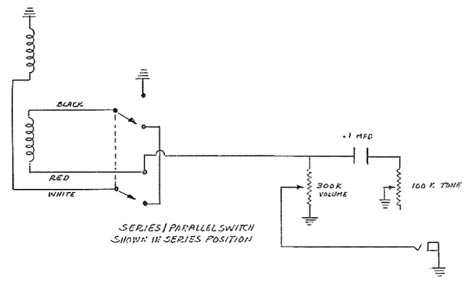

Gibson Victory Standard circuit schematic Simplified circuit diagram
