Gibson Victory Custom wiring photographs
Electrical components on the Gibson Victory Custom are accessible by removing the pickguard. The controls and majority of the circuitry are attached to the scratchplate. There is also a coil choke attached to the body of the bass, wired to the bass potentiometer. See also the Victory Custom circuit schematic |
1982 Gibson Victory Custom scratchplate, with attached circuitry |
Circuitry, clearly showing the body-mounted choke, and its attachment to the bass control potentiometer |

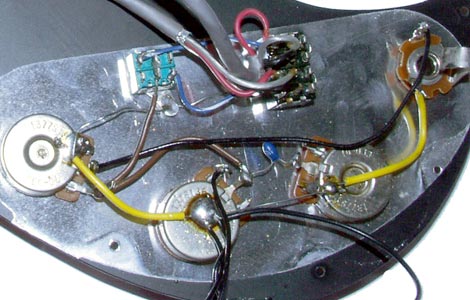

Close up view of potentiometer and switch wiring |
|
