Gibson Victory Artist wiring photographs

Electrical components on the Gibson Victory Artist are accessible by removing the pickguard.

The controls and majority of the circuitry are attached to the scratchplate. There is a printed circuit board that holds the mode switch, treble and bass controls. There is also a coil choke attached to the body of the bass. There are actually two subtley different versions of this circuit, the first (that we shall call Rev A) is seldom seen compared to the second, Rev B. For more details of these differences, see the Gibson Victory Artist schematic page.

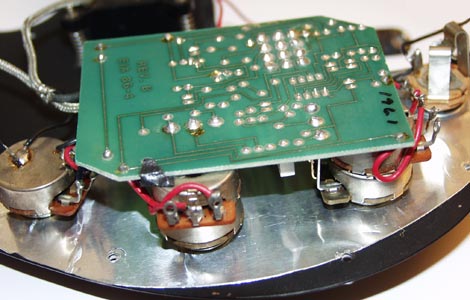

1982 Gibson Victory Artist - assembled scratchplate with attached pcb

1982 Gibson Victory Artist - assembled scratchplate with attached circuit board. (Revision B board).




1982 Gibson Victory Artist body with pickup routes, and choke

Artist body with pickup routes, and choke.




1982 Gibson Victory Artist - the choke, part number 71-281 is also used in the Victory Custom

The choke, part number 71-281 is also used in the Victory Custom




Gibson Victory Artist Rev A circuitry

Gibson Victory Artist Rev A circuitry. Note the passive/active toggle switch is NOT soldered directly to the pcb, and both this and the pickup selector switch look identical




1982 Gibson Victory Artist printed circuit board

Gibson Victory Artist Rev B printed circuit board. The passive/active switch is now mounted to this board. The two stacked pots are marked HA1101.
